AI-BASED AGENT LEVEL REASONING ENHANCING MODULES

Introduction

Every robot in an application is expected to act as an autonomous software agent, that must make sure that the robot executes the tasks that have been assigned to him by the operator, but also that the robot at the same time interacts appropriately with its environment. The latter consists not only of objects and/or other computer controlled devices, but also of the robot operator, and even people that are not involved in the agent's behaviour. The decisions that the robot agent makes autonomously are all about what action the robot should take next, given the current situation. And that situation in itself is the interaction between (at least) the following types of activities:

• task execution.
• world model updating.
• control of the robot's motions.
• perception via the robot's sensors.

Technical Specifications

Software and hardware Requirements

Each of the above-mentioned activities will be realised by (at least) one software component. (At the level of the agent, the hardware is already abstracted away via sub-components of the four presented types of activities.)

Usage Manual

The robot agent is being used by several “stakeholders”. The sections below give some more explanation about these interacations.

Use Case 1.

Use Case Diagram

Usage Models

As described in the glossary section, “agent” is a software activity that must decide about the next action that the robot should do. In that decision, it has access to the following complementary sources of knowledge/information:

• the task(s) that the robot is supposed to execute.
• the environment, or world model, in which the tasks are executed.
• the perception about the actual situation(s) that the robot is currently operating in.
• the knowledge about what actions make sense in which situations, to realise which tasks.
• the control actions that the robot can execute.

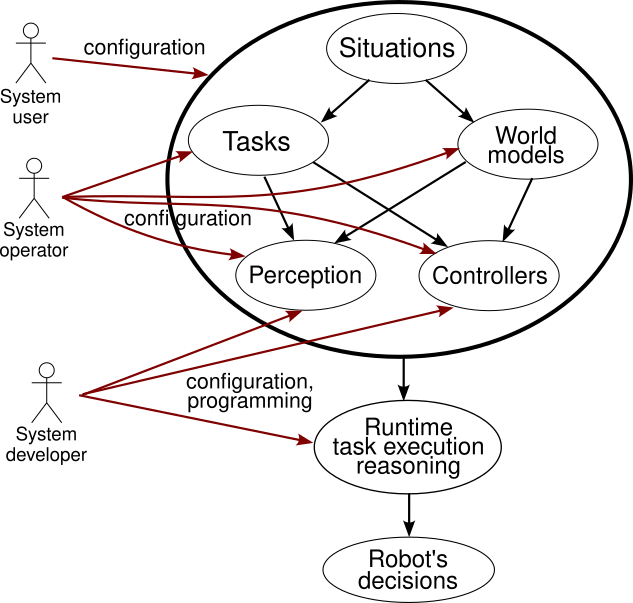

The usage diagram depicts the components only at a high level and must be more concretely instantiated for each particular application context. The importance of the diagram is to make developers aware of (i) the complementary sources of information that provide the context of the reasoning, and (ii) the need to get properties from that context to fill in (“configure”) in the instances of the concrete actions that the agent reasons about.
Typically, there are three types of users that can interact with the decision making agent:

• End user: he can only configure a limited number of parameters of the agent, reflecting how he wants to influence the decision making/reasoning that has been programmed by the system developers, and already pre-configured by the system operators.
• Operators: they serve several end users, and have deeper access to the decision making; notably to the configuration of the control and perception components, and the set of tasks and world models that the reasoning agent can work with.
• System developer: System developers: they provide all the implementation software, and the configuration options, for both operators and end users.

Functional Specifications

Functional Block Diagram

The order in which the reasoning algorithm looks at the available information/knowledge is as follows:

• The task is the first piece of information to consider, because that is what the robot has to perform.
• Then, the reasoner queries the situations that it has knowledge about, to find one for which the right task has been defined. This is used as a candidate situation for the next step.
• The reasoner evaluates how well the selected situation fits to the available perception information.
• If a fit is found, it combines the information from task, situation and perception, to select the best action to execute, with the right configuration values for the identified context.

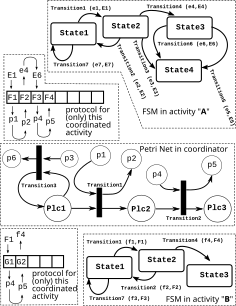

Figure “DR-functional” Figure "DR Functional diagram" shows the decision making (“coordination”) parts of the “reasoning”. That coordination consists of two complementary parts, more in particular, the following two coordination mechanisms work between:

1. the coordinated activities, namely the perception, control, task execution and world model updating activities. The “reasoning” that is required is to decide which should be the states of the involved activities (perception, control, world model updating and task execution) that should be activated at every particular moment in time. A state is one of the possible behaviours of that activity, and the possible choices, and transitions between these choices, is represented/implemented as a Finite State Machine in the coordinated activity.
2. The Petri Net in the “reasoning” activity: Petri Nets are complementary to Finite State Machines, because they “mediate” the events that are sent to, and received from, a set of coordinated activities. That mediation is based on the knowledge about what activity states and configurations are allowed and "best", for the agent as a whole.

Technical Specifications

Because of the just-mentioned large variety of activity and agent behaviours, we can give no concrete technical specifications in this overview document. Except for these generic software design primitives and insights:

• events: they are generated inside activities, and “broadcasted” to other activities, that can react to them.
• event processing: the “mediator”/”reasoner” is the only activity that has the knowledge about which coordinated activities must react to which events. Hence, it “listens” to all events of all the activities it coordinates, and filters only the relevant ones. The selected events are fed to its internal Petri Net, which will “fire” from time to time, generating new events that must be given back to (a selection of) the coordinated activities.
• event communication: the above-mentioned “filtering” typically also involves the translation of the event names from the activity-specific versions to the agent-specific meanings. As well as the choice of the appropriate communication channels between activities; these can indeed be deployed inside the shared memory space of one single process; or in different processes on the same computer; or on different computers connected by wired or wireless message transport channels.
